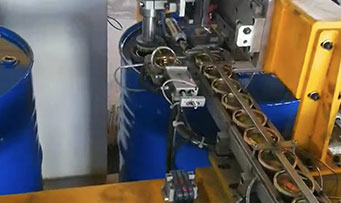

auto drum plug screw machine

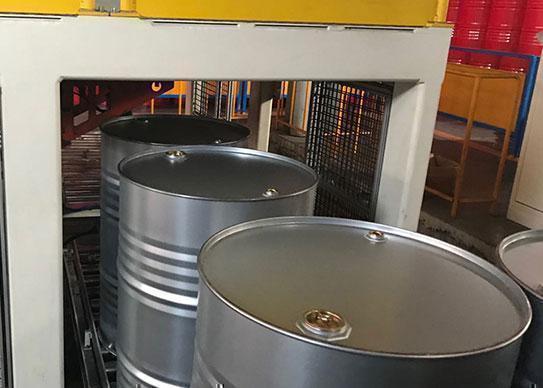

auto drum plug screw machine

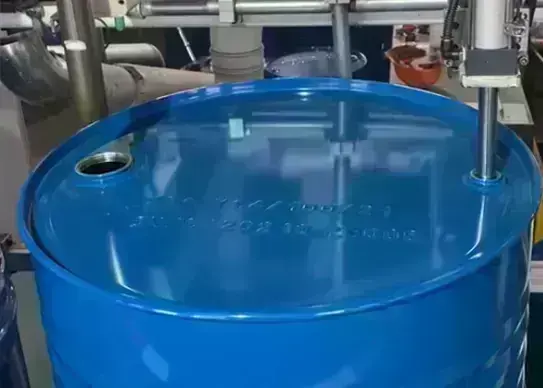

55 gallon drum capping machine 53

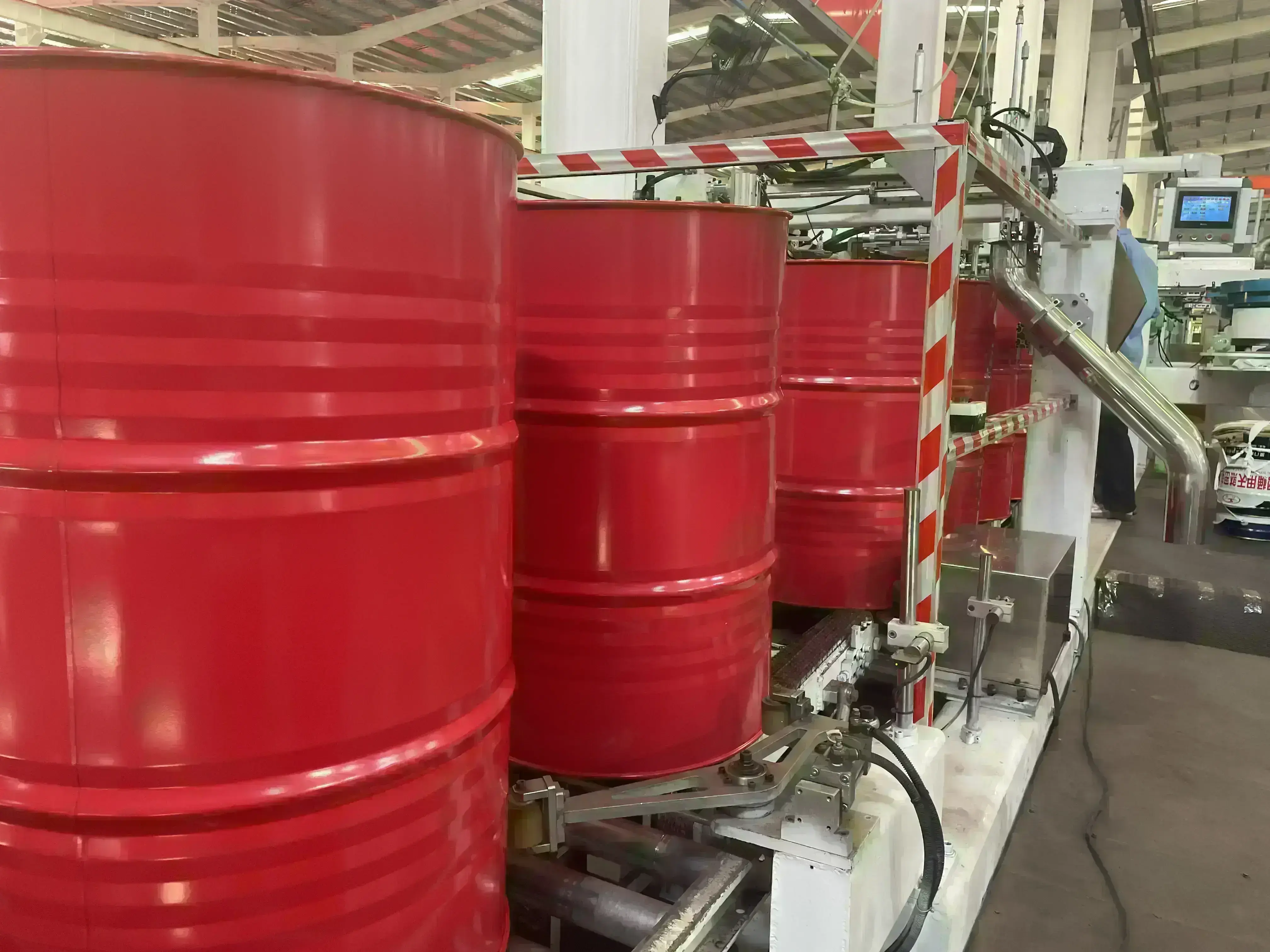

drum capping machine 1

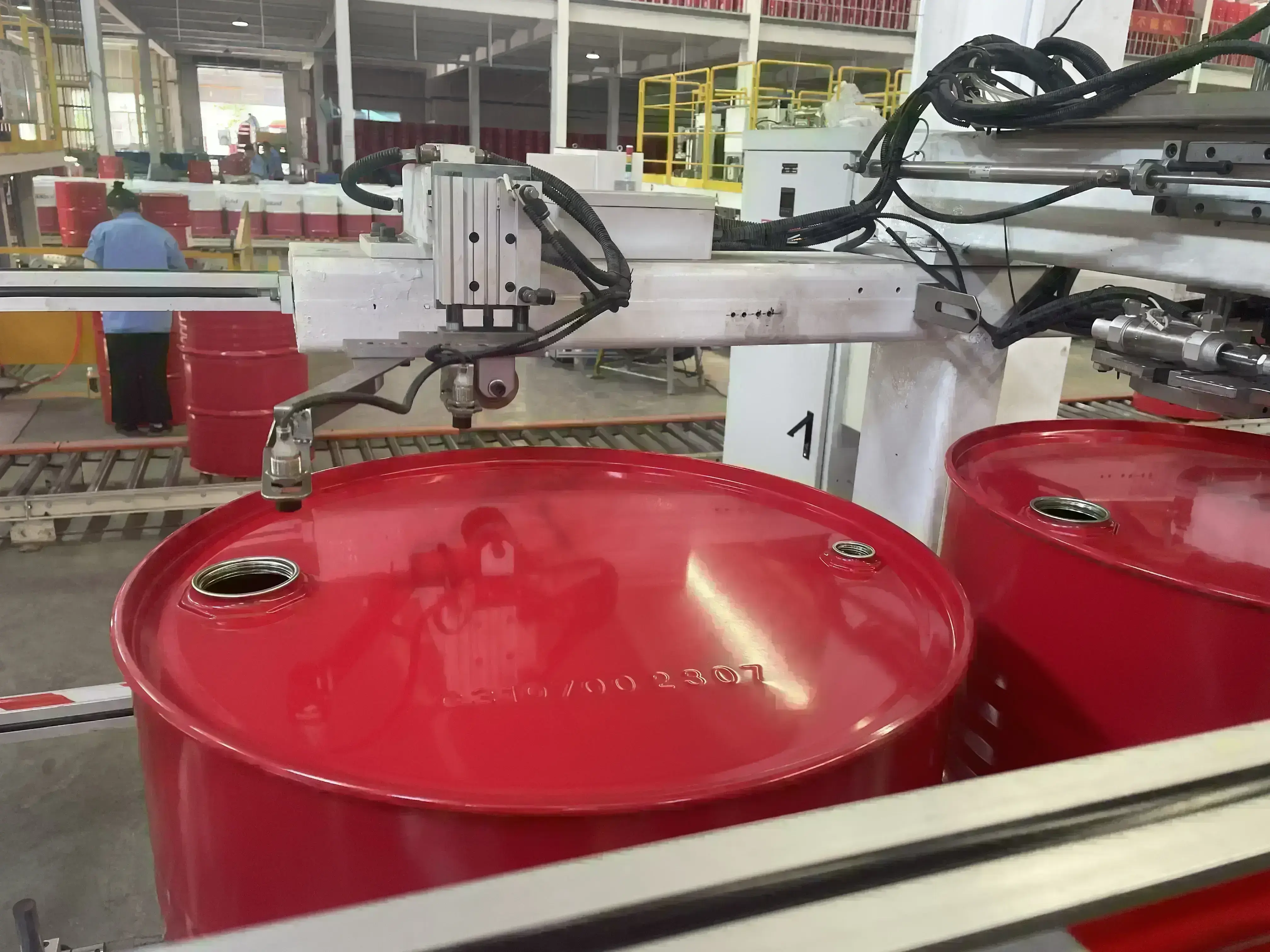

drum capping machine 2

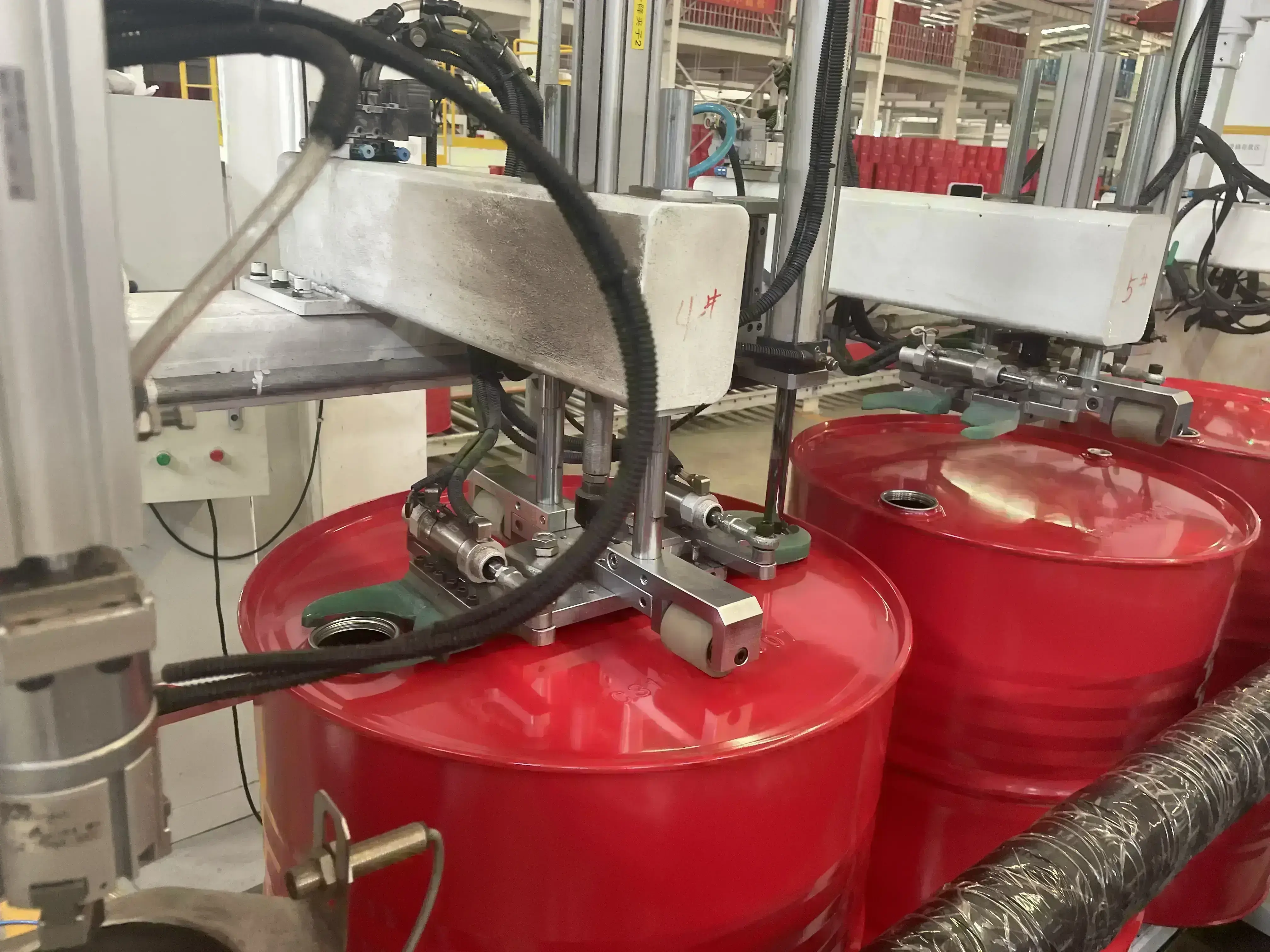

drum capping machine 3

55 Gallon Drum Capping Machine

The drum capping machine can screw the drum plugs into flange bases on drum top automatically. Drum plugs need to be screwed into flange bases on drum top. This procedure could be done manually in small scale production. The 55 gallon drum capping machine was invented to improve efficiency in assembling 55 gallon drum plugs, which integrates several necessary functions into one line.


The drum capping machine runs at a constant speed, which helps to keep high production efficiency and better consistency of steel drums. Functions and designs of the drum capping machine are adjustable according to actual layout of drum production line.

55 Gallon Drum Capping Machine Details

1

The functions of the drum capping machine include removing the paint cap, cooling down drum, filling protection gas, assembling drum plugs, and drum seals cap could be integrated based on customer's needs. Additional designs to achieve special functions are available on request.

2

The drum capping machine is designed to be suitable for any standard plugs, including plastic drum plugs and metal drum plugs. Torque is pre-set and constant for each drum bung while screwing into the drum flange.

3

Installation and adjustment of the drum capping machine needs experienced engineers. On-site drum plug machine installation and training service will be provided for customers.

55 Gallon Drum Capping Machine Specification

Functions

Removes paint cap, cools drum, fill protection gas, install 55 gallon drum plugs, seal cap seals etc.

Application

Steel drum production

Customization

Available on requests


55 Gallon Drum Capping Machine Features:

Compatibility with Various Cap Types: Drum plug machines are designed to work with different types of 55 gallon drum plugs, including screw caps, bungs, and crimp-on caps, providing versatility for different sealing needs.


Adjustable Torque Settings: To ensure that caps are tightened to the correct specification without damaging the drum or cap, our drum capping machine offers adjustable torque settings. This feature allows for precise control over the capping process.


Pneumatic or Electric Operation: Drum capping machines may be powered pneumatically (using compressed air) or electrically. Pneumatic models are often preferred in environments where electrical safety is a concern, such as in the presence of flammable vapors.


Portable and Stationary Designs: Depending on the needs of the operation, drum capping machines can be designed for portability, allowing them to be moved to different locations within a facility, or they can be stationary for a dedicated capping station.


Automatic and Semi-Automatic Operation: Some drum plug machines are fully automatic, requiring minimal operator intervention, while semi-automatic models may require more hands-on operation but still significantly increase efficiency over manual capping.

55 Gallon Drum Capping Machine Operating Video

55 Gallon Drum Capping Machine Related Applications
