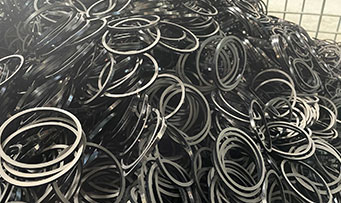

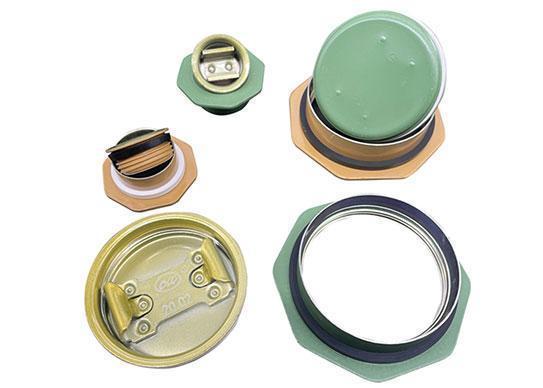

Lacquered Drum Flange
drum flange
drum flange

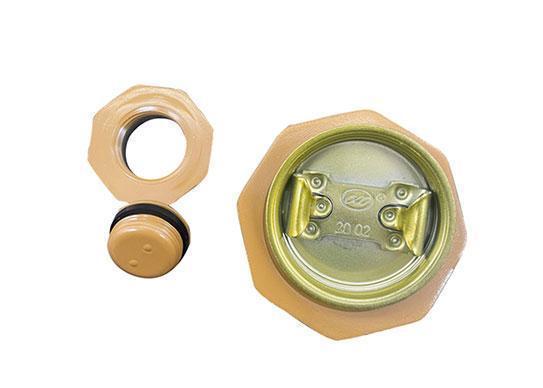

steel drum flange closure

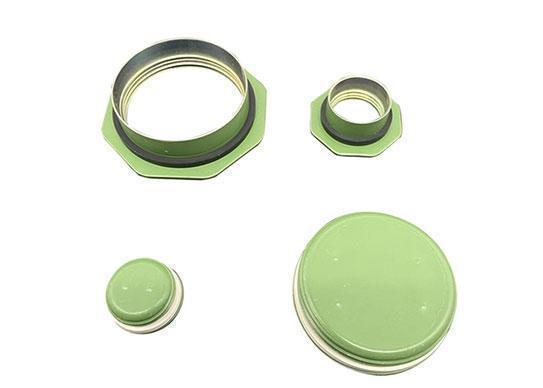

drum flange closure

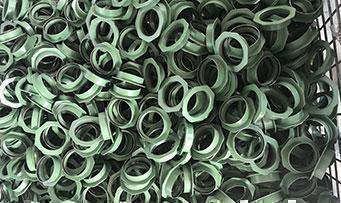

Lacquered Drum Flange

Lacquered drum flange is produced based on spraying coating layer onto zinc plated drum flange. Coated drum flange will be baked in oven at high temperatures, which makes the coating layer very stable and not easy to fall-off even during curling process.


Lacquered flange follows the same specification as zinc plated flange. Various types of coating materials, including phenolic, epoxy phenolic, and PVF are available to choose from. With special characters of different coating layers, lined drum flange has excellent performance in the application of food and chemical packaging.

Details of Lacquered Drum Flange

1

Lining materials from reputable companies are well formulated before spraying. Epoxy phenolic, PVF, and phenolic are the most common coating materials. Special coatings are also available on requests.

2

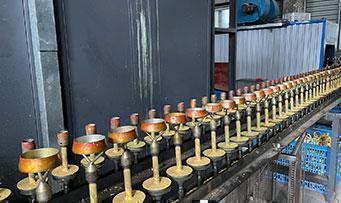

Coating process of each flange is settled and finely controlled, which contributes to uniform thickness of the coating layer. Stable coating layer is strong enough, and will not fall-off when assebling onto drum top with drum insertion die.

3

Standard gasket for lacquered drum flange includes EPDM, NBR and dual gasket. Special formulated gaskets are available on requests. Once riveted onto drum top, coated flange is able to provide maximum sealing effects for the steel drum.

Specification of Lacquered Drum Flange

Size

2 Inch and 3/4 Inch

Material

Cold-rolled Steel

Surface Treatment

Lacquered with Phenolics, Epoxy Phenolics and PVF

Thread Standard

ISO-228

Gasket

EPDM, Black Buna, PE, Viton, Dual

Carton Quantity

250 Pieces, 500 Pieces

Pallet Quantity

11,250 Pieces, 22,500 Pieces


Lacquered Drum Flange Operating Video

Lacquered Drum Flange Related Applications
