Flex Spout Cap

The plastic oil drum cap and the stretch shrink cover of the oil pour port need to be welded together by a plastic welding process. The oil drum lid is made of PP and PE materials.


The production process of a spout cap for oil tin involves drilling a hole of corresponding size in the middle of the EVA plastic cover to make a breathable hole. Then the PTFE waterproof and breathable film is welded on the telescopic cover with hot pressing equipment, and then the telescopic cover is welded on the barrel cover by ultrasonic welding technology. Ultrasonic welding has the advantages of environmental protection, sealing and energy saving.


 Polypropylene and polyethylene materials are difficult to weld with ultrasonics, and the product also has sealing requirements.


According to the natural frequency of the equipment, make ultrasonic welding mold for oil drum lid. Generally, oil drums are available in 20L/18L and 10L. Due to the different specifications of the oil drum, the oil drum closure also has different sizes. Make the bottom mold fixture according to the size and shape of the telescopic cover, and make the upper mold ultrasonic welding head according to the welding position of the oil drum cover. When producing, we only need one ultrasonic welding machine to replace different ultrasonic molds to weld different specifications of oil drum covers.

Popular Drum Barrel Fittings

Related Drum Accessories and Fittings News & Blog

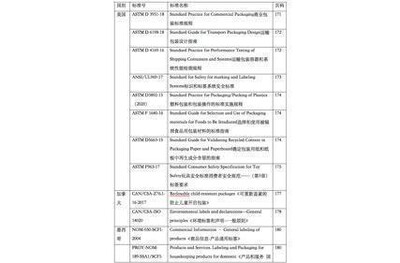

  • Complete Solution Of Packaging Technology Standards In North AmericaComplete Solution Of Packaging Technology Standards In North AmericaJuly 1, 2022The packaging technical standards involved in this chapter are shown in the table below.Internationally recognized standard definitions refer to definitions and related discussions that are generally ...view
  • Leakage Problems Of Steel DrumLeakage Problems Of Steel DrumJuly 1, 20221. Leakage of barrel body weldIn the original manufacturing of medium-sized steel drums, raw material steel plates with a thickness of 1.0mm may be commonly used, but after the thickness is changed to...view
  • WasherWasherJuly 11, 20231. The definition and types of washer Washer , also known as O-ring, is a circular section of the sealing element, the material is usually made of rubber, silicone rubber, fluorine rubber and other po...view

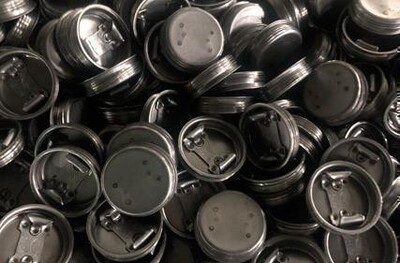

  • Function Of Galvanization And Its Operating PrincipleFunction Of Galvanization And Its Operating PrincipleJuly 1, 2022Function:Galvanizing the metal can make it corrosion resistant.Without protective zinc coating, metal will always be exposed to elements and will be oxidized and corroded faster.In terms of corrosion ...view

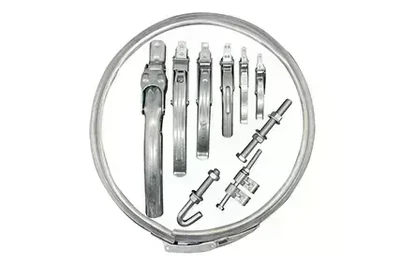

  • What Is a Tite Seal Drum Cap and How Does It WorkWhat Is a Tite Seal Drum Cap and How Does It WorkJanuary 18, 2024In industries that deal with drums and containers, safety and efficiency are paramount. Tite Seal Drum Caps have emerged as an essential component for secure sealing, preventing spills, leaks, and con...view
