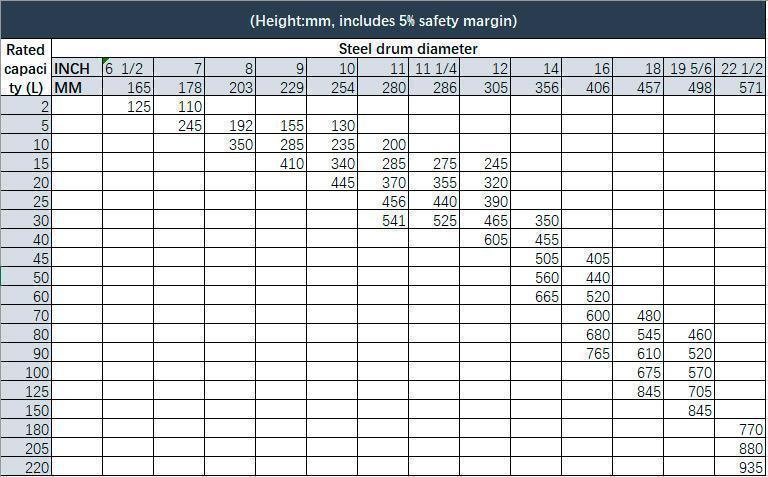

This table is the ISO recommended guide for the design of dimensions for a series of steel drums. The corresponding table of diameter and height series of steel drums with capacity from 2 litre to 220 litre is stipulated.
The upper part of the table is the diameter size of the steel drum, and the left part is the rated capacity of the steel drum, which has included 5% safety allowance in the steel drum. The middle part of the table shows recommended height values for steel drums corresponding to capacity and diameter.
This table can be used as a reference for the design and production of non - standard size steel drums in our country.
Short comment: The steel drum has various sizes, but with standard drum holes that fitted with 2inch and 3/4 inch steel drum closures.
